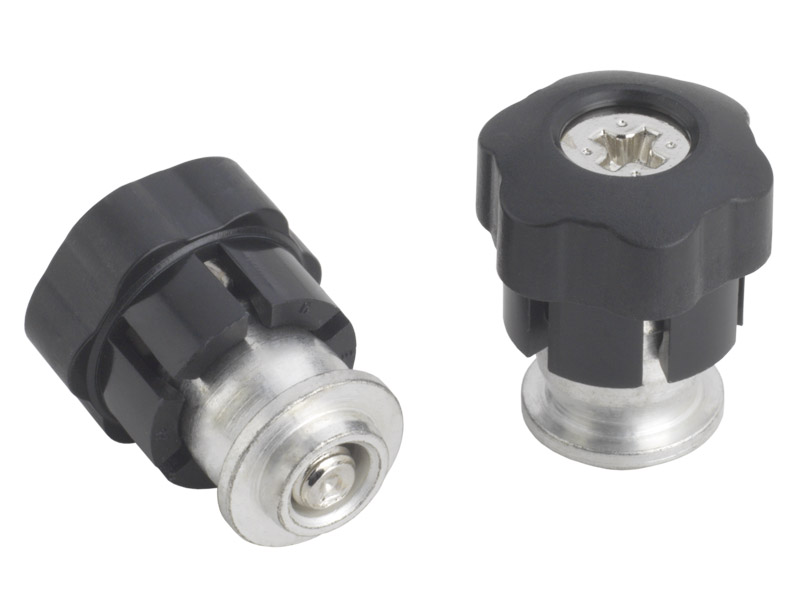

ReelFast® Panel Fastener Retainer - Type SMTPR - Metric
Captive Screws, Surface Mount - Retainer
Part # |
A (Shank) Max. |
R ± 0.13 |
øH - Hole Size in Sheet + 0.08 |
øD - Min. Solder Pad |
Standard Finish |
Optional Finish |
CAD |
|---|---|---|---|---|---|---|---|
| SMTPR-6-1ET | A (Shank) Max. N/A 1.53 mm | R ± 0.13 N/A 8.26 mm | øH - Hole Size in Sheet + 0.08 N/A 6.35 mm | øD - Min. Solder Pad N/A 10.06 mm | Standard Finish N/A Electro Plated Tin, ASTM B545, Class A with Preservative Coating, Annealed | Optional Finish N/A |
CAD
N/A
|
